98 BTS - Lower Threshold with Integrated Dampener (SSS (Satin))

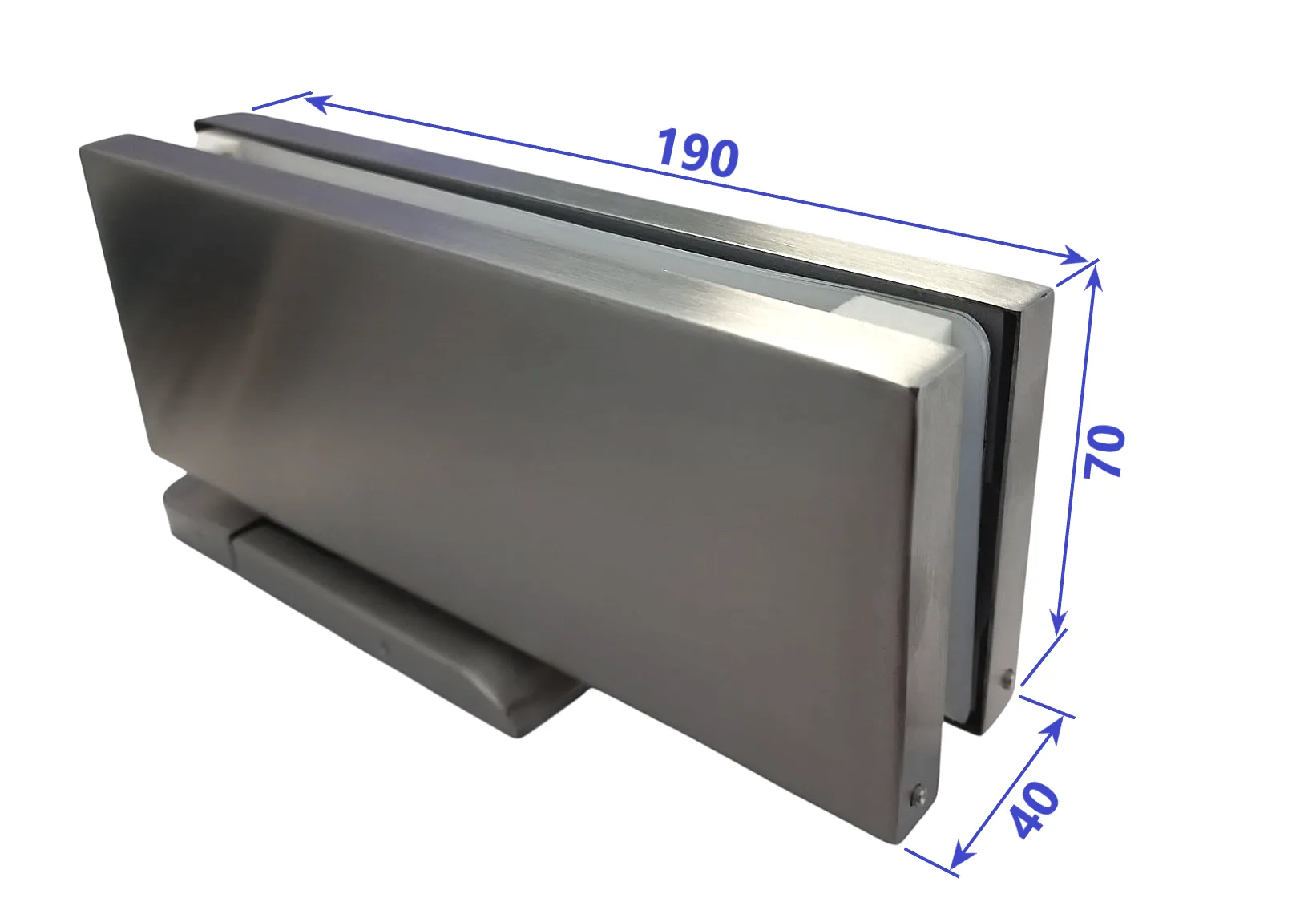

The MD 98 BTS bottom pivot hinge with a matte black finish is an advanced technical solution for glass swing doors, integrating a hydraulic closing mechanism directly into its body. This design completely eliminates the need for a traditional floor spring, simplifying the installation process and preserving the integrity of the floor finish.

• Product Type: Bottom pivot hinge with integrated hydraulic closer
• Finish: Matte black
• Compatible Glass Thickness: 8 – 12 mm
• Glass Type: Tempered glass
• Functionality: Automatic and cushioned closing, adjustable speed
• Advantage: No cutting or intervention in the floor required

Ideal for interior glass doors in office spaces, commercial areas, or residences with a minimalist design, the MD 98 BTS hinge in a matte black finish offers both top-tier functionality and a modern, discreet aesthetic.
