MD 100 BTS - Hydraulic Bottom Patch Hinge with Integrated Closer (100kg), Polished Finish

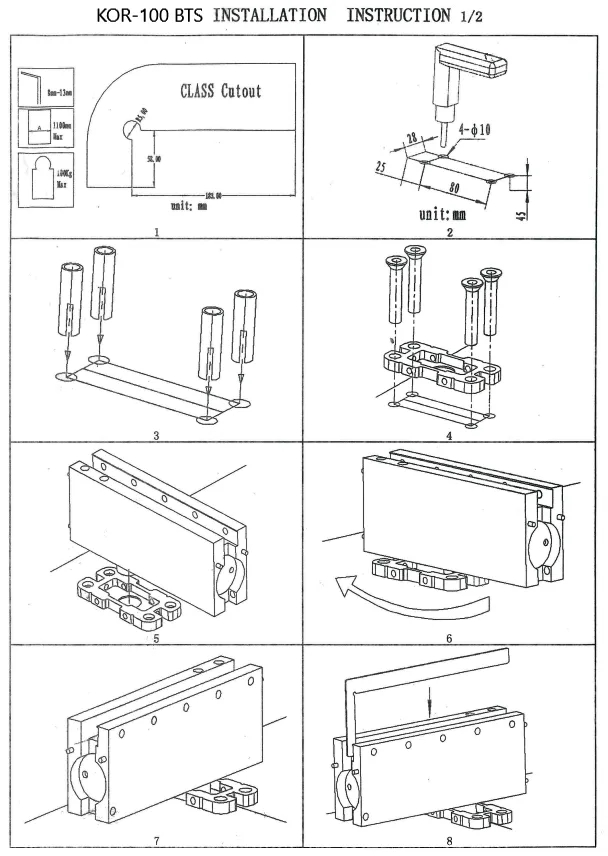

The MD 100 BTS hydraulic bottom patch hinge is an advanced solution for glass swing doors, integrating the functionality of a floor spring directly into the fitting's body. This design eliminates the need for complex floor cut-outs, simplifying and speeding up the installation process. It is engineered to support doors weighing up to 100 kg and ensures a controlled, silent closing action.

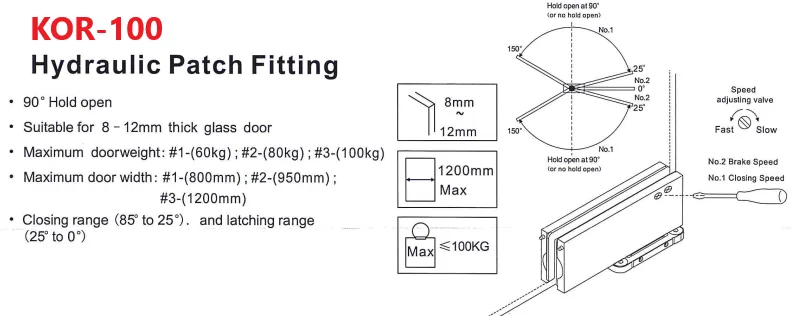

• Product Type: Hydraulic Bottom Patch Hinge with Integrated Closer
• Finish: Polished
• Maximum Door Weight: 100 kg
• Maximum Door Width: 950 mm
• Compatible Glass Thickness: 8 - 13 mm
• Features: Self-closing, 90° hold-open
• Material: Aluminium and Stainless Steel

The MD 100 BTS is the ideal solution for renovation projects or new constructions where installing a traditional floor spring is impractical. It is perfectly suited for entrance doors in office buildings, retail stores, and other high-traffic commercial spaces, offering reliability and smooth operation.
