TC-00001264
Hinges and Fittings

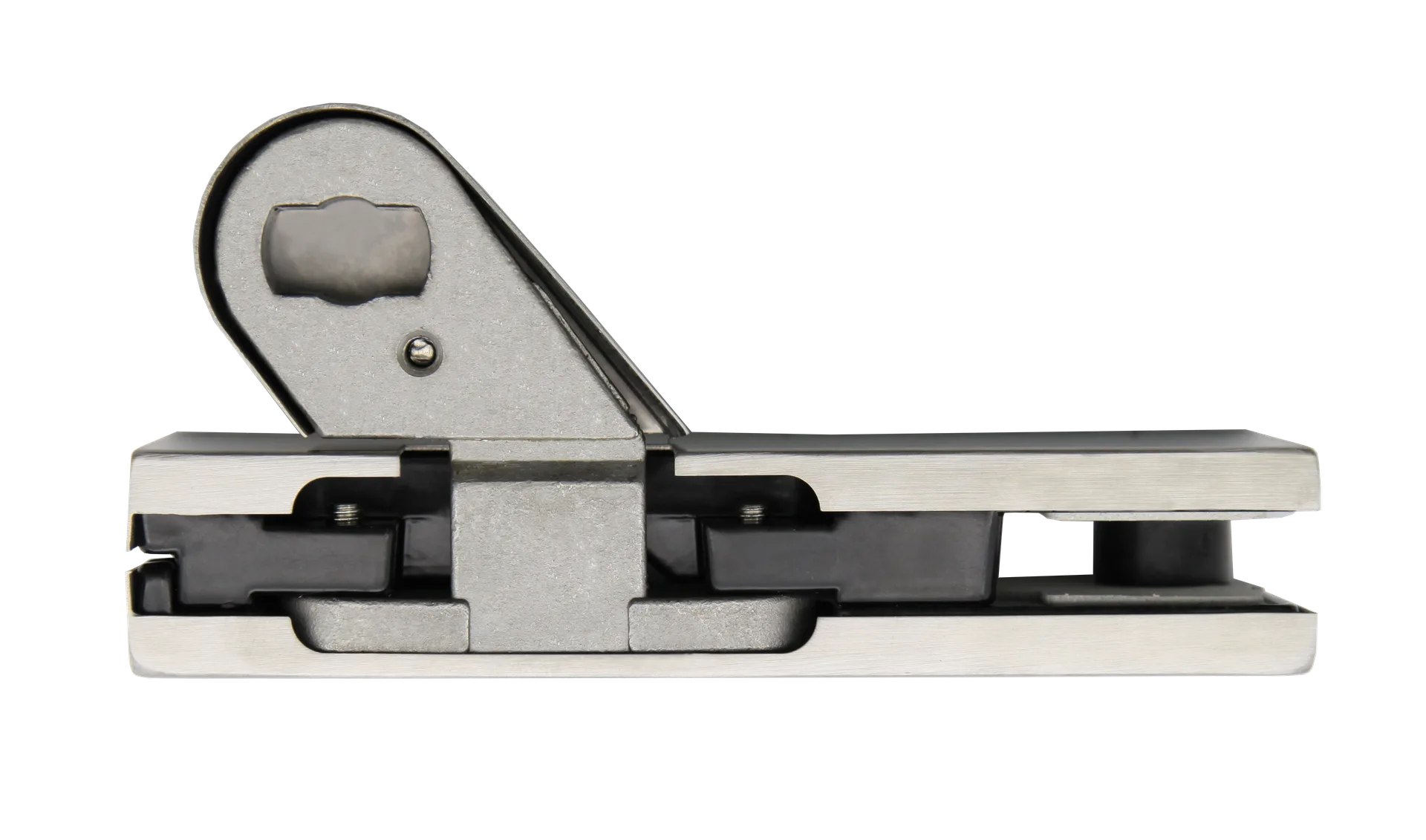

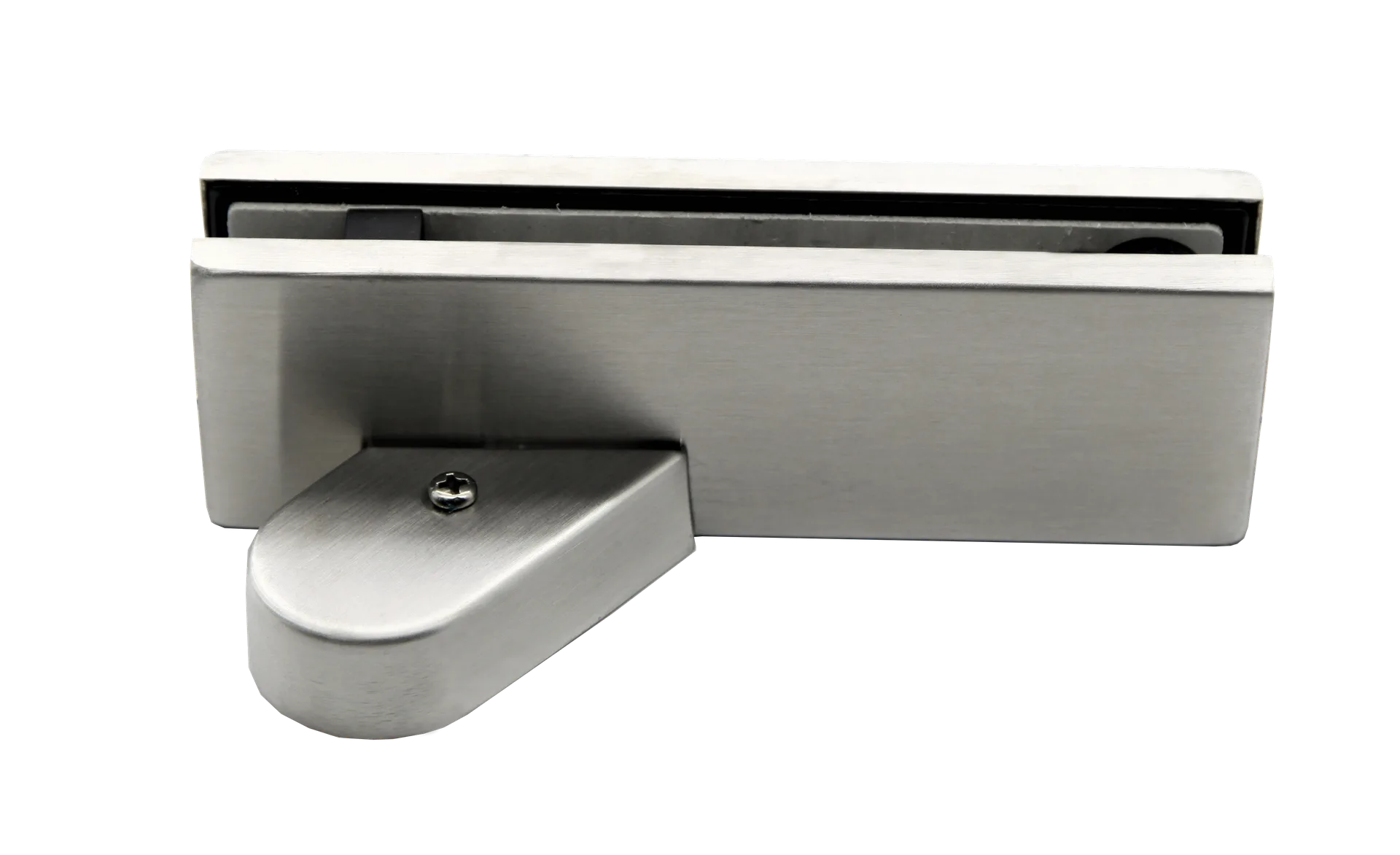

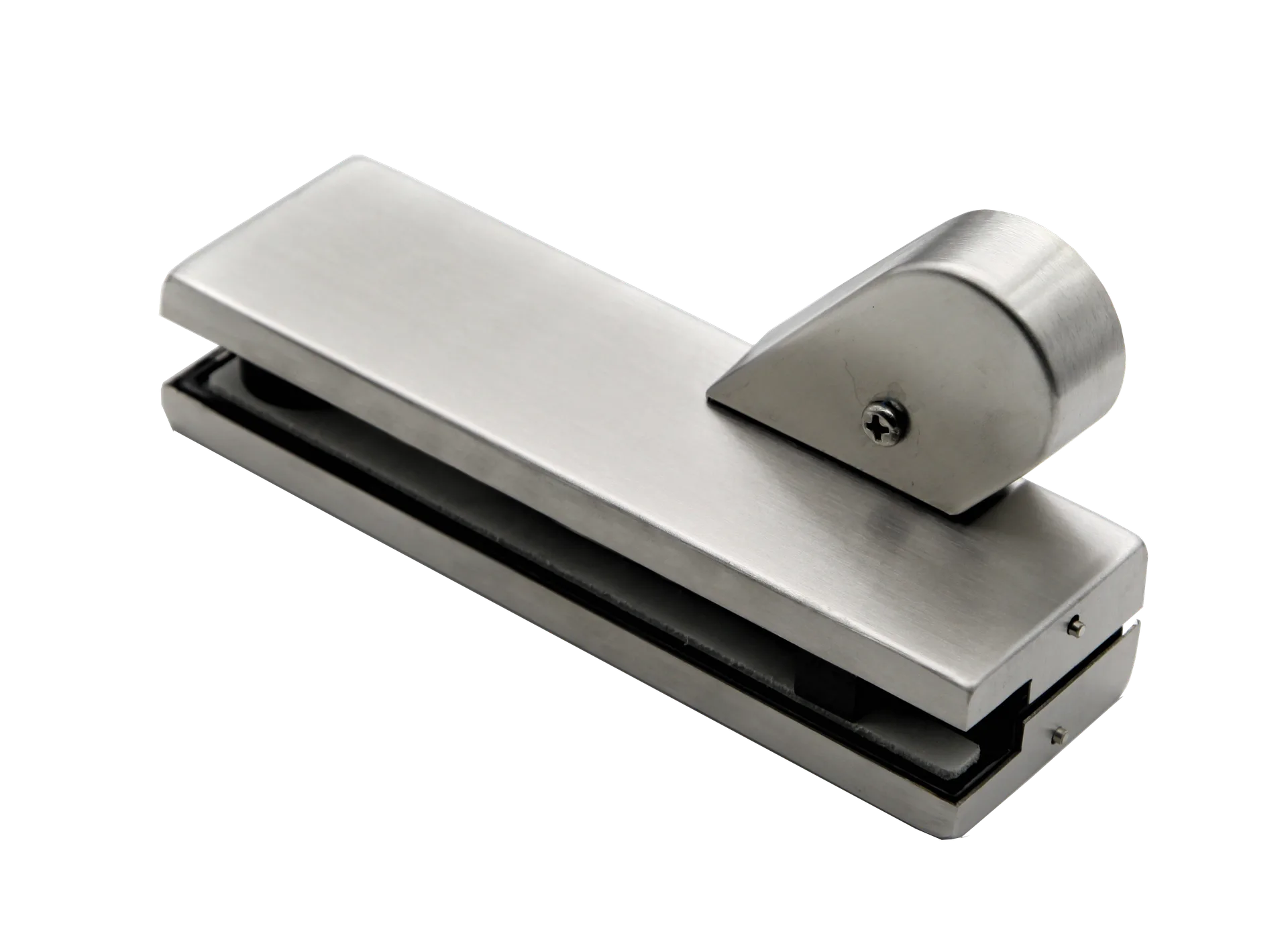

MD 110D-L - Left Hand Eccentric Bottom Patch Fitting Hinge
● In stock
Price on request
Send a Quote Request — We'll Respond Quickly.
About this product
The MD 110D-L fitting is a bottom patch hinge with an eccentric pivot, designed for use in glass swing door systems that employ a floor spring. This model is intended for left-hand door installation. The eccentric pivot provides the ability to finely adjust the position of the glass panel relative to the frame, ensuring perfect alignment and optimal operation.
- Product Type: Bottom Patch Fitting Hinge
- Orientation: Left Hand
- Mechanism: Eccentric pivot for adjustment
- Compatible Glass Thickness: 10 - 12 mm

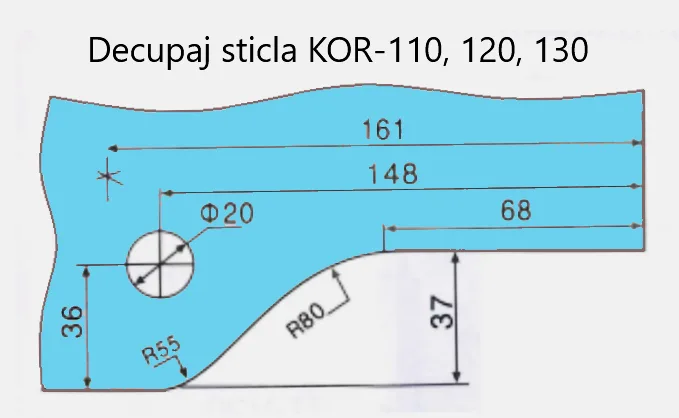

- Glass Type: Tempered glass (requires specific cut-out)
- Material: Available in finishes such as satin or polished stainless steel
It is a key component in the installation of frameless glass doors, frequently used in shop entrances, office buildings, and commercial spaces. It ensures a solid and reliable connection between the glass panel and the floor spring's pivot mechanism.
