TC-00003275
Shower Hinges
MD 302P-2 - Wall-to-Glass 135 Shower Hinge, Square
● In stock
Price on request
Send a Quote Request — We'll Respond Quickly.
About this product

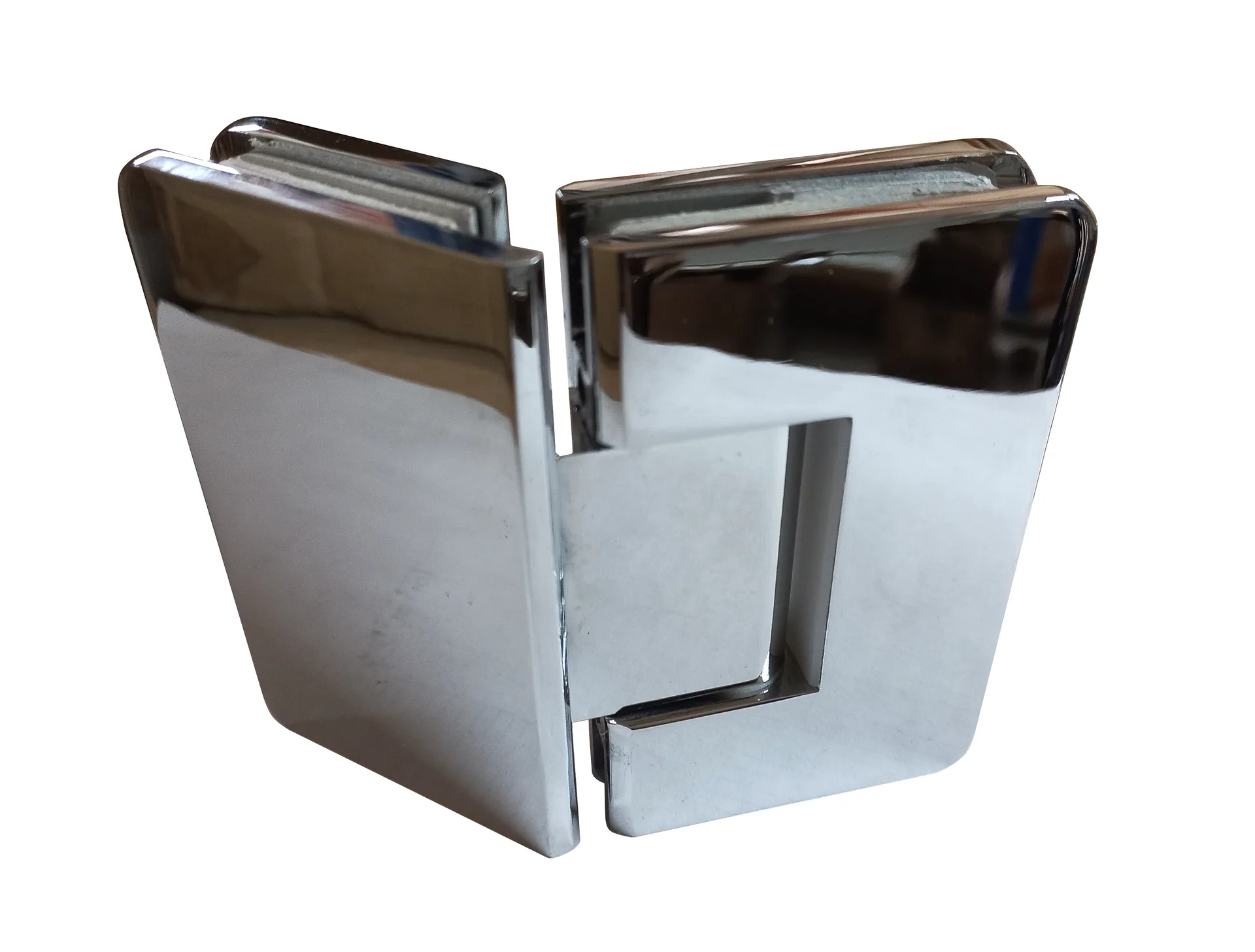

The MD 302P-2 shower hinge is designed for mounting glass panels to the wall at a 135-degree angle. This square-design model is an essential component for creating polygonal shower enclosures or non-standard corner configurations. Made of brass, it ensures reliable operation and solid door support.
- Mounting Type: Wall-to-glass
- Fixing Angle: 135 degrees
- Material: Brass
- Compatible Glass Thickness: 8-10 mm
- Maximum Weight per 2 Hinges: 45 kg
- Maximum Door Width: 750 mm
- Includes: PVC gaskets for glass protection
The hinge is equipped with PVC gaskets that prevent direct contact between metal and glass, protecting the panel during installation and use. It is a robust technical solution, suitable for residential and commercial projects that require durable hardware for tempered glass.
