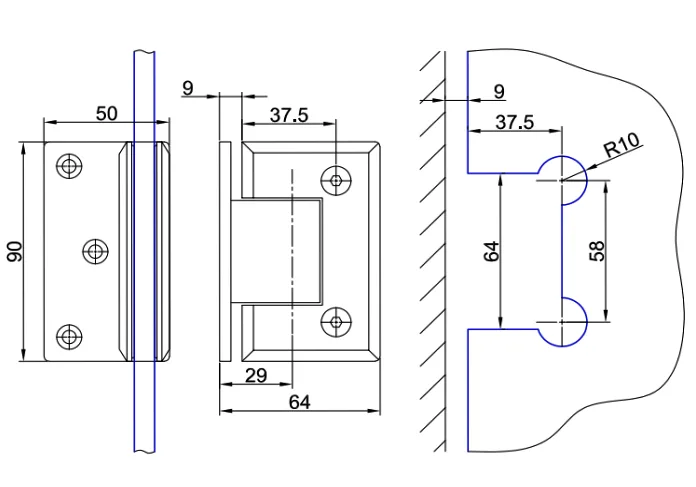

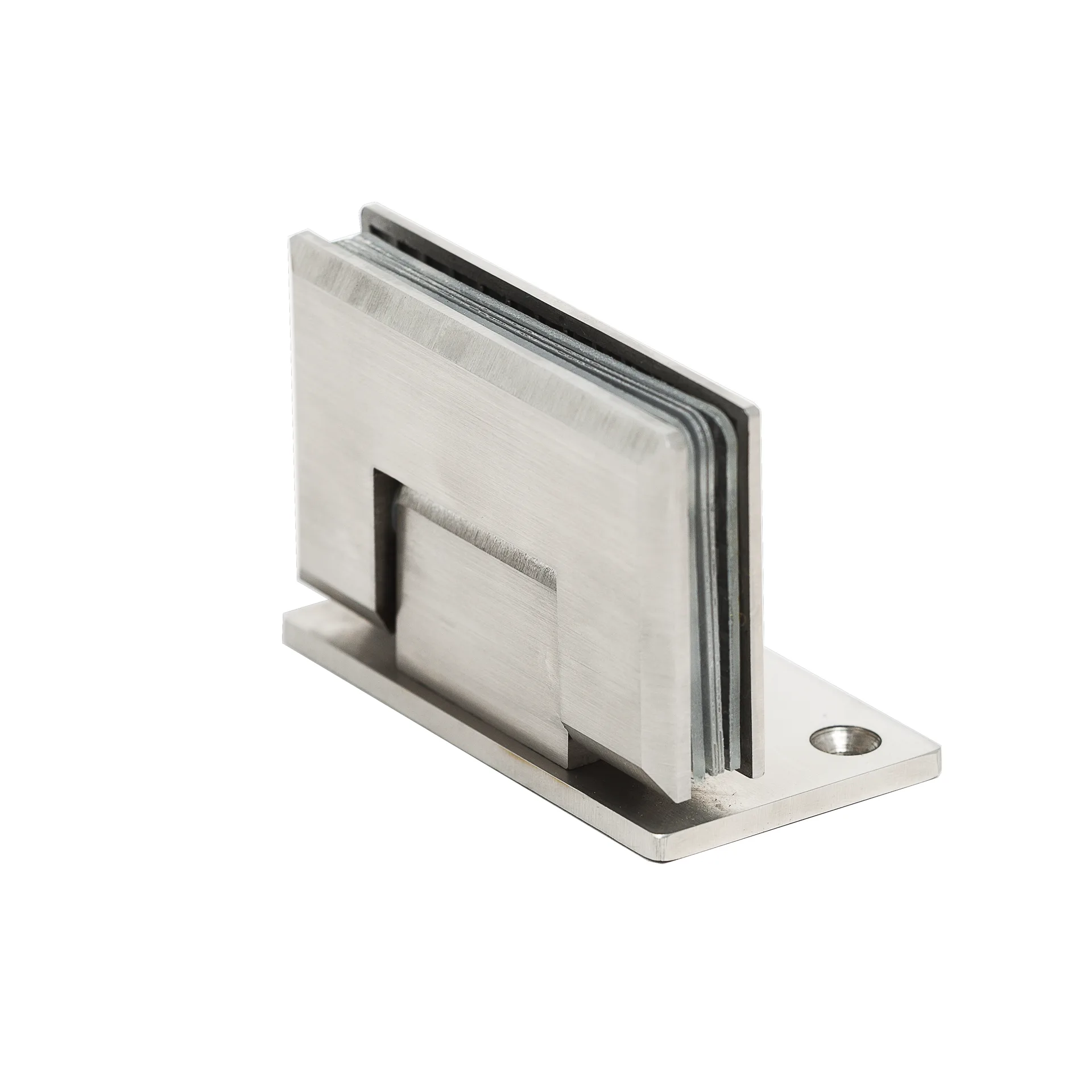

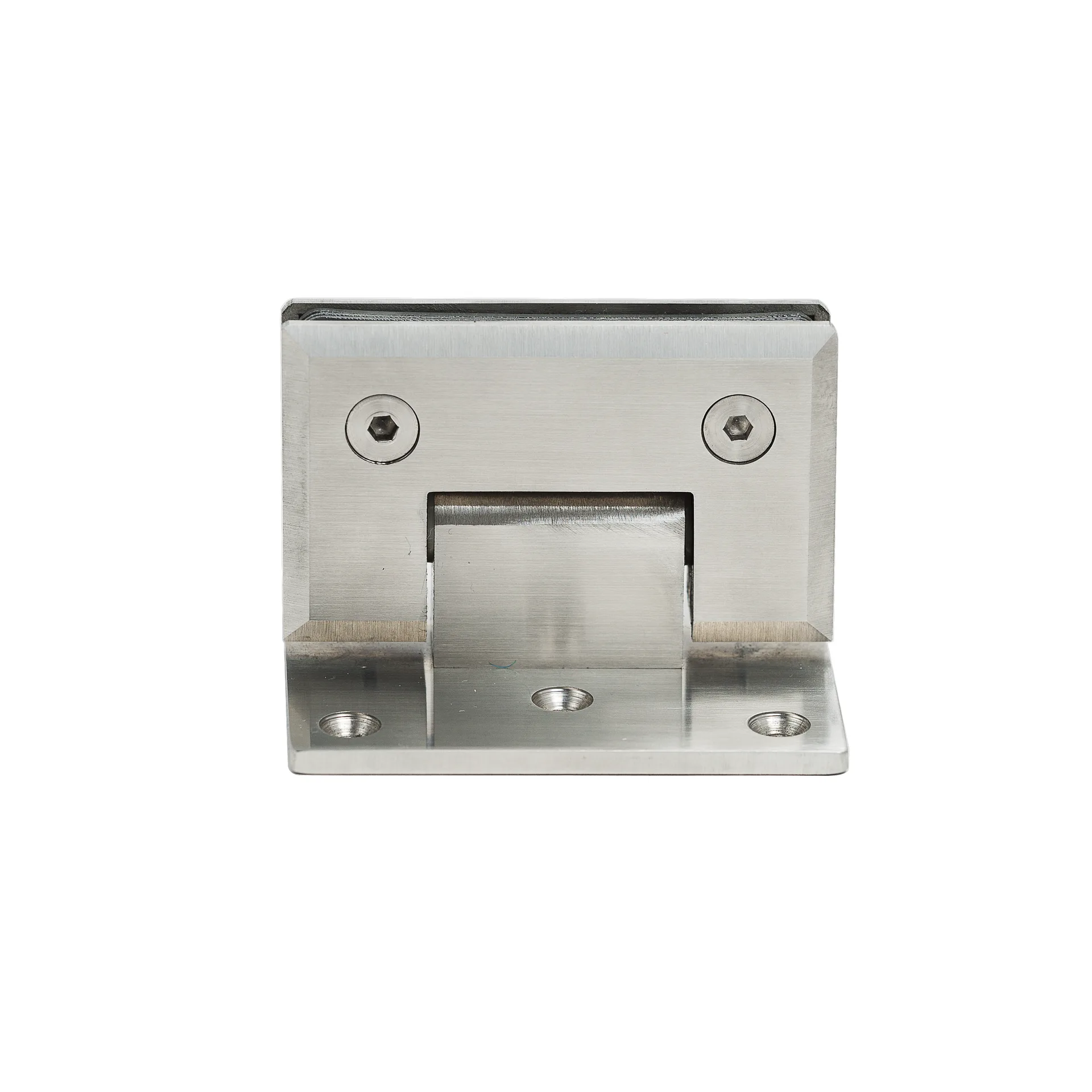

MD 305 - Wall-Glass Hinge 90° (Unilateral Mounting)

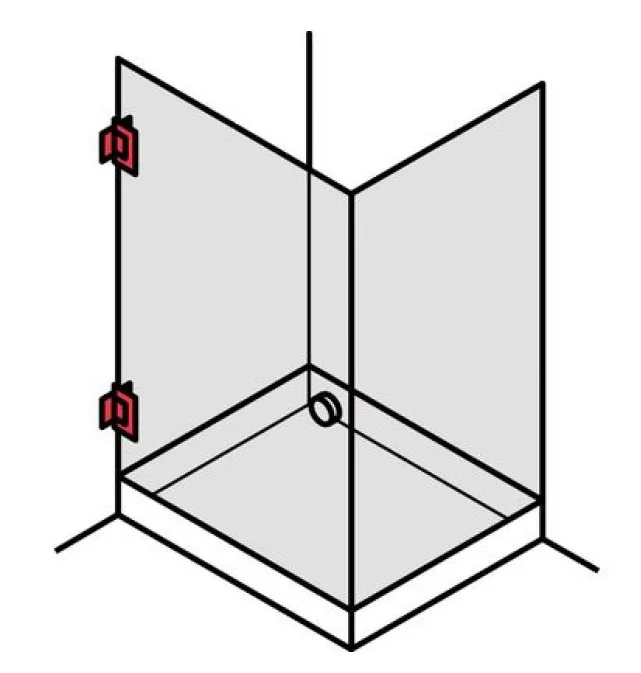

The MD 305 wall-glass hinge, with unilateral mounting (short plate), is designed for the installation of swing glass doors at a 90-degree angle to the wall. Its compact design makes it ideal for shower cabins with minimalist aesthetics or for installations where wall mounting space is limited.

• Product type: Wall-glass hinge, 90 degrees
• Model: MD 305 (Unilateral mounting / Short plate)
• Material: Solid brass for performance in humid environments

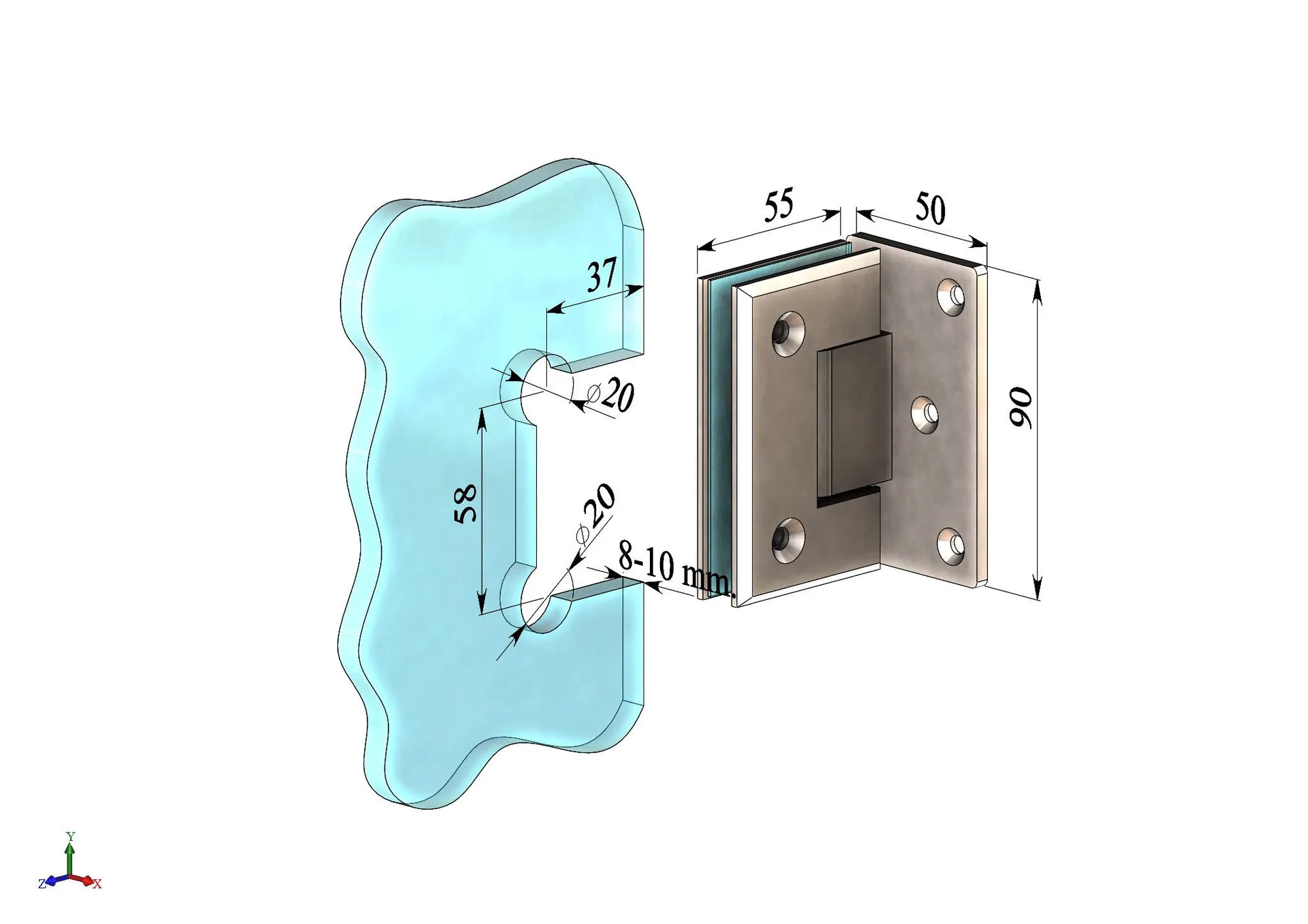

• Compatible glass thickness: 8 - 10 mm (toughened glass)
• Maximum weight per 2 hinges: 45 kg
• Maximum door width: 750 mm
• Includes: PVC gaskets to prevent metal-glass contact

Made from solid brass, the MD 305 hinge ensures reliable operation and corrosion resistance. The package includes the necessary gaskets to protect the glass during installation and use. The hinge is available in multiple finishes, allowing for harmonious integration with other metal elements in the bathroom.
