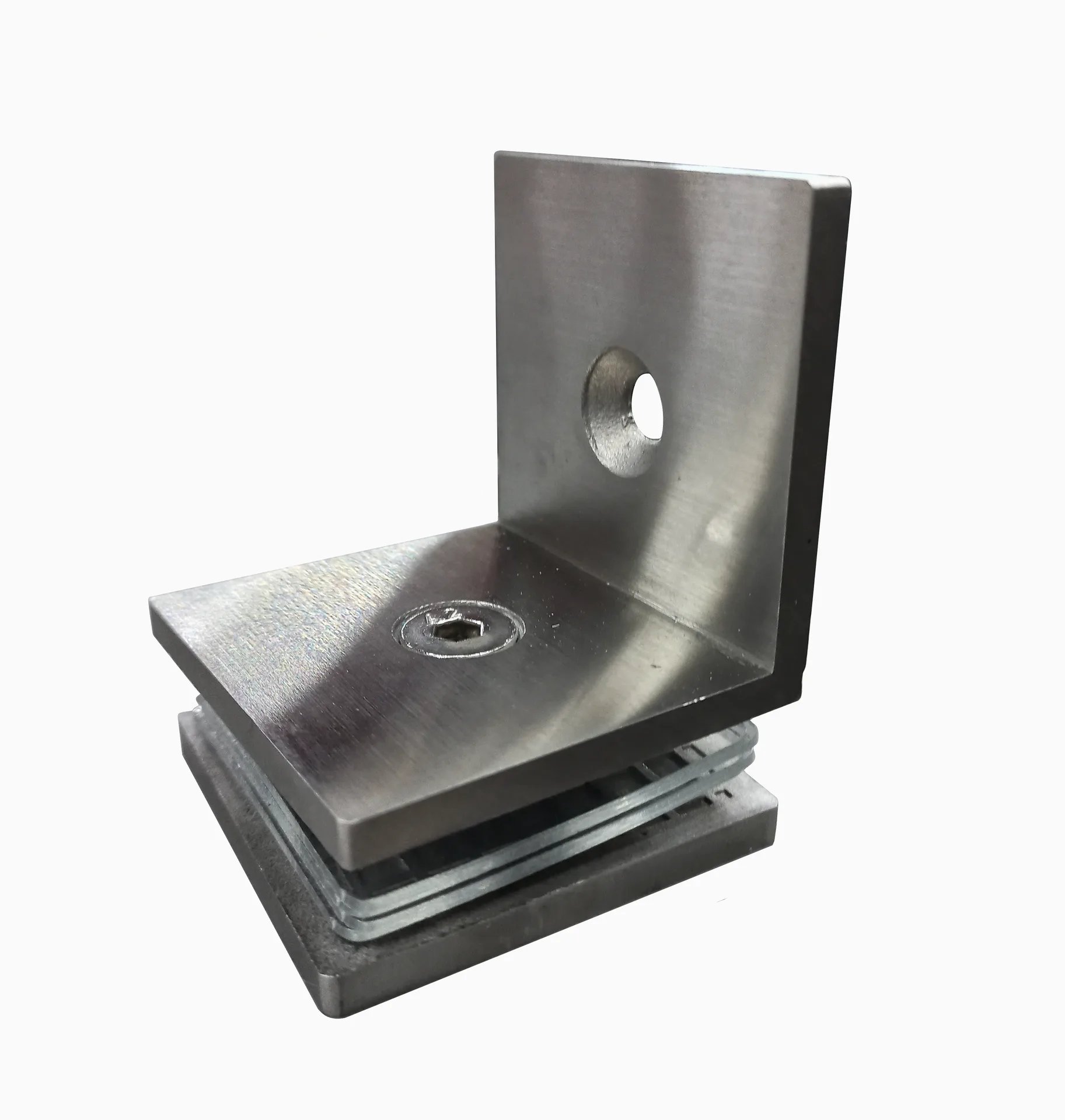

MD 722 - Wall-to-Glass Connector 90

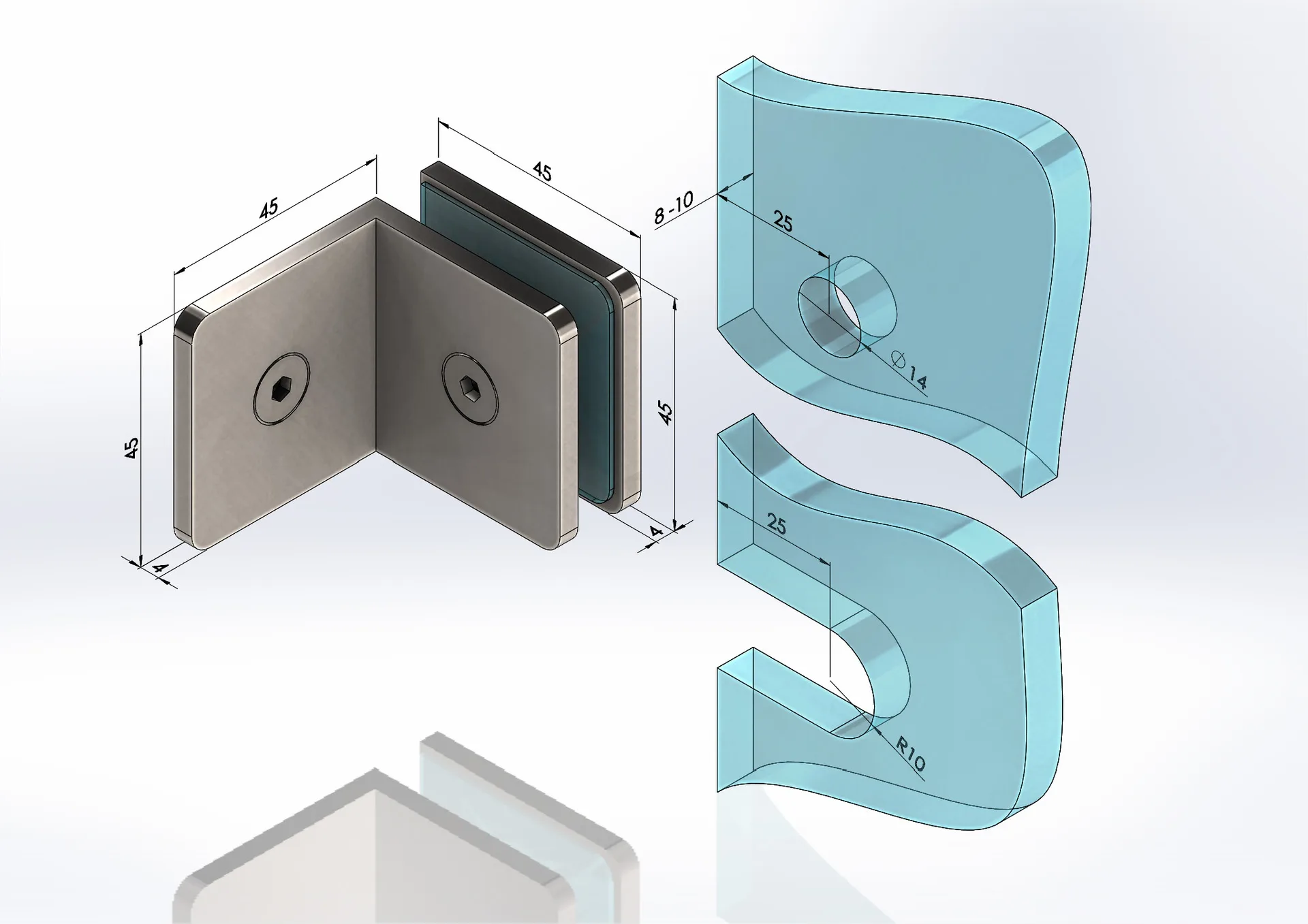

The MD 722 connector is a robust fixing component designed to anchor fixed glass panels directly to a wall at a precise 90-degree angle. Made from high-quality brass, this fitting provides solid structural support, making it an essential component in the construction of frameless shower enclosures and glass screens. Its minimalist design, with 45x45 mm dimensions, contributes to a clean and modern aesthetic.

• Product Type: Wall-to-Glass Connector
• Fixing Angle: 90 degrees
• Compatible Glass Thickness: 8 - 10 mm (tempered glass)
• Material: Brass
• Glass Fabrication: Requires a cutout in the glass panel for installation
• Gaskets: Includes PVC gaskets to protect the glass at the point of contact

This connector is frequently used to brace fixed panels in walk-in shower enclosures, glass partitions in office or commercial spaces, and other architectural applications where a perpendicular fixing to a solid surface is required.
