FR-00000086
Stiffening Bars

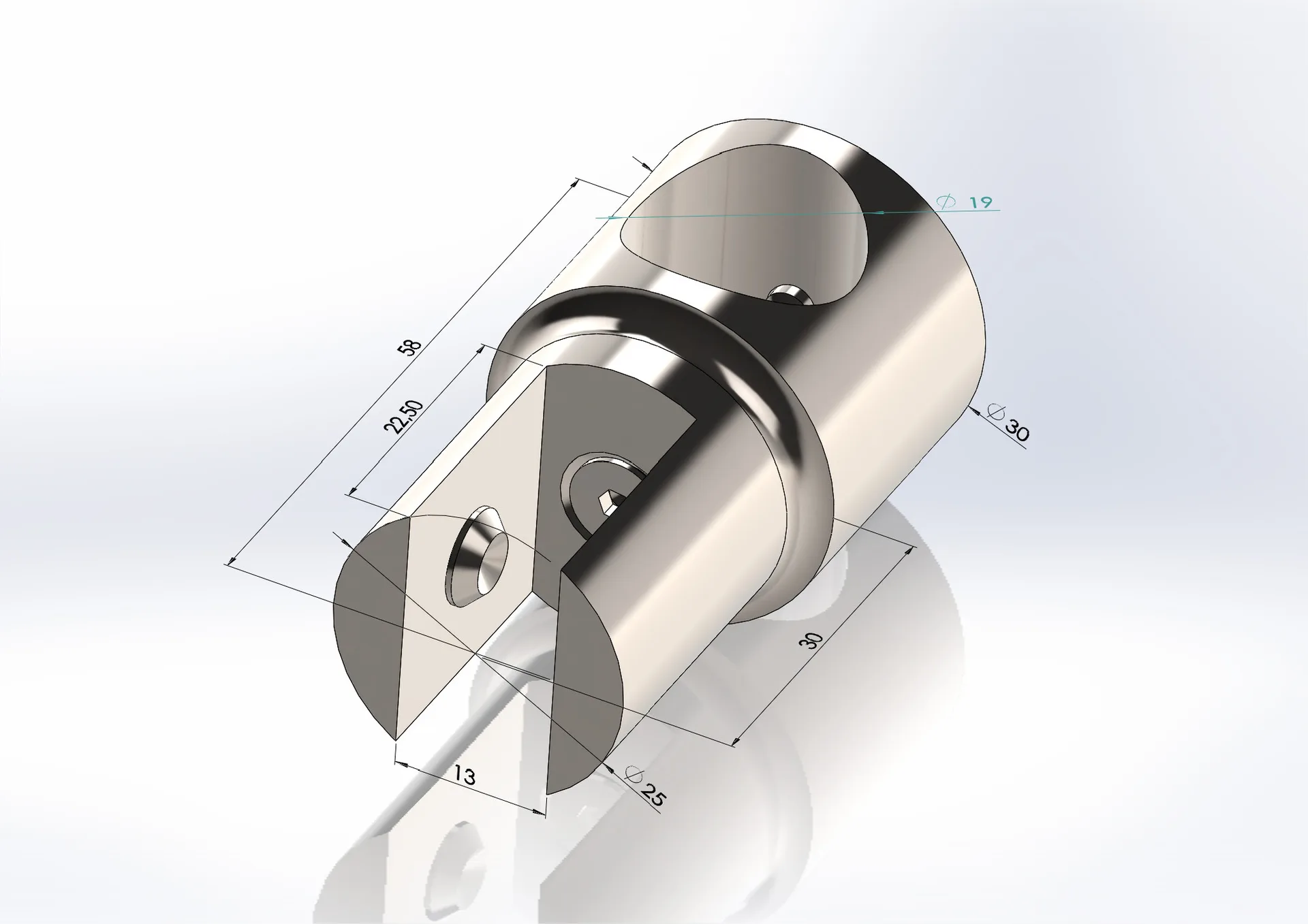

MD 914 - Tube-to-Glass Stabilizer Connector for Ø19mm Bar
● In stock
Price on request
Send a Quote Request — We'll Respond Quickly.
Culoare: SSS (Satin)
About this product
The MD 914 connector creates a secure mechanical junction between a round stabilizer bar (Ø 19 mm) and the top edge of a fixed glass panel. Designed to allow the bar to pass through, this fitting is ideal for configurations where the stabilizer bar continues over multiple panels or requires an intermediate support point. It is compatible with 8-10 mm tempered glass.
- Product Type: Tube-to-glass connector for stabilizer bar
- Material: Brass
- Tube Compatibility: Outer diameter Ø 19 mm (T-type, pass-through)
- Glass Thickness: 8 mm - 10 mm
- Function: Connects the glass panel to the stabilizer bar
- Gaskets: Included to protect the glass during tightening
Using the MD 914 connector is crucial for ensuring the stability of large glass panels in shower enclosures, partition screens, or other glazed assemblies. Its firm grip on the glass evenly distributes weight and prevents any panel movement, contributing to the safety and durability of the entire system.
